Chapter Summary

This chapter explains how DNA stores and passes on genetic information. It covers the structure and packaging of DNA, the experiments that proved DNA is the genetic material, semiconservative replication, transcription, the genetic code, translation, the lac operon model of gene regulation, the Human Genome Project and DNA fingerprinting, arranged in NCERT order for CBSE Class 12 Biology board exam revision and quick recall of key experiments.

Key Concepts

Structure of the Polynucleotide Chain

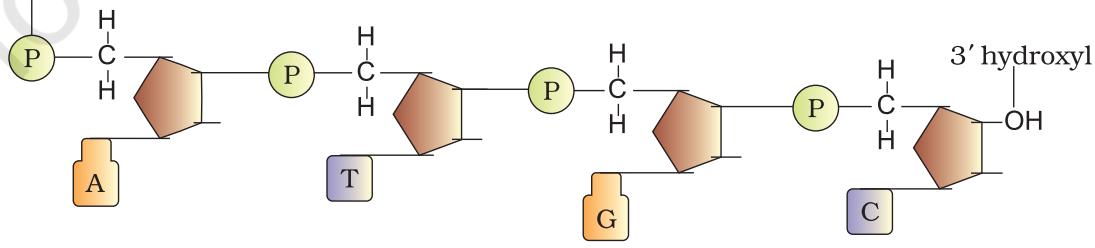

Nucleic acids are long polymers whose building blocks are nucleotides. Every nucleotide has three parts: a nitrogenous base, a five-carbon (pentose) sugar and a phosphate group. In DNA the sugar is deoxyribose, in RNA it is ribose. The bases come in two families. Purines (adenine and guanine) have a double-ring structure, while pyrimidines (cytosine, thymine and uracil) have a single ring. Thymine occurs only in DNA and uracil only in RNA; cytosine is shared.

The naming is a favourite exam trap. When a base joins the 1' carbon of a sugar through an N-glycosidic bond, the product is a nucleoside (for example adenosine or deoxycytidine). When a phosphate is attached to the 5' carbon of that nucleoside by a phosphoester bond, you get a nucleotide. Two nucleotides are connected by a 3'-5' phosphodiester bond, and repeating this builds a polynucleotide chain.

A finished chain has direction. One end carries a free phosphate on the 5' carbon (the 5' end) and the other end has a free OH on the 3' carbon (the 3' end). The sugar-phosphate units make the backbone, and the bases stick out sideways from it. RNA differs from DNA in two ways: an extra OH group at the 2' position of every ribose, and uracil in place of thymine. That single extra OH makes RNA chemically more reactive, which becomes important later when we ask why DNA is the preferred genetic material.

Key Points

Examples

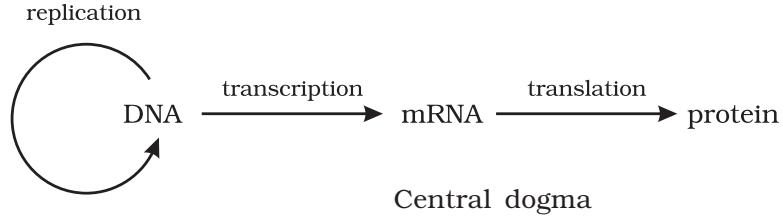

The Double Helix Model and Central Dogma

Friedrich Miescher first isolated an acidic substance from nuclei in 1869 and called it nuclein, but the structure stayed a mystery for decades because long DNA is hard to isolate intact. In 1953 James Watson and Francis Crick proposed the double helix, using X-ray diffraction pictures produced by Maurice Wilkins and Rosalind Franklin. Their idea also rested on Erwin Chargaff's observation that in double-stranded DNA the amount of adenine equals thymine and guanine equals cytosine, so the A:T and G:C ratios are each one.

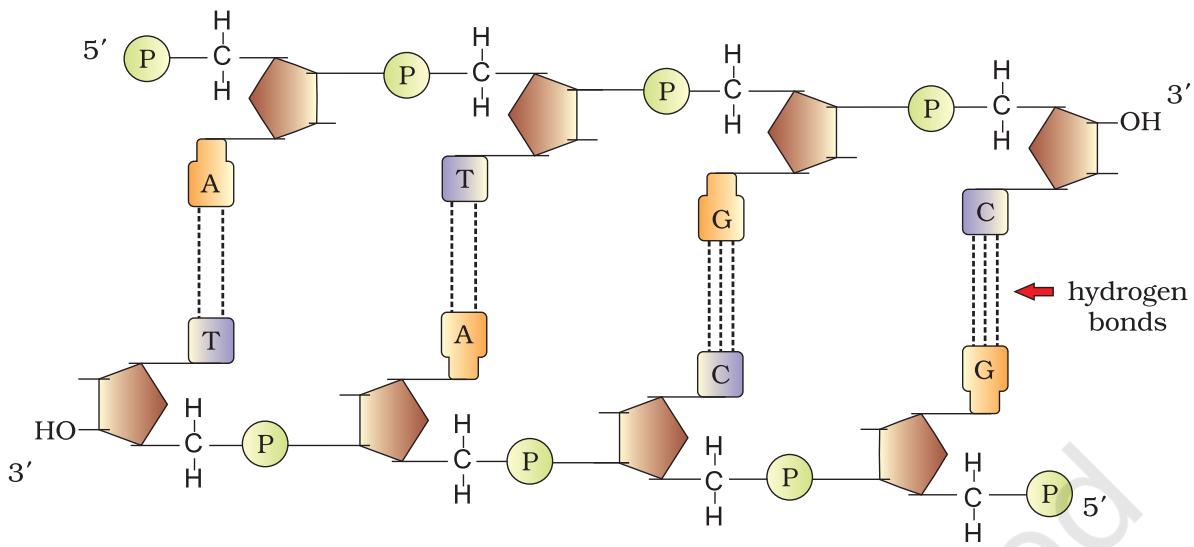

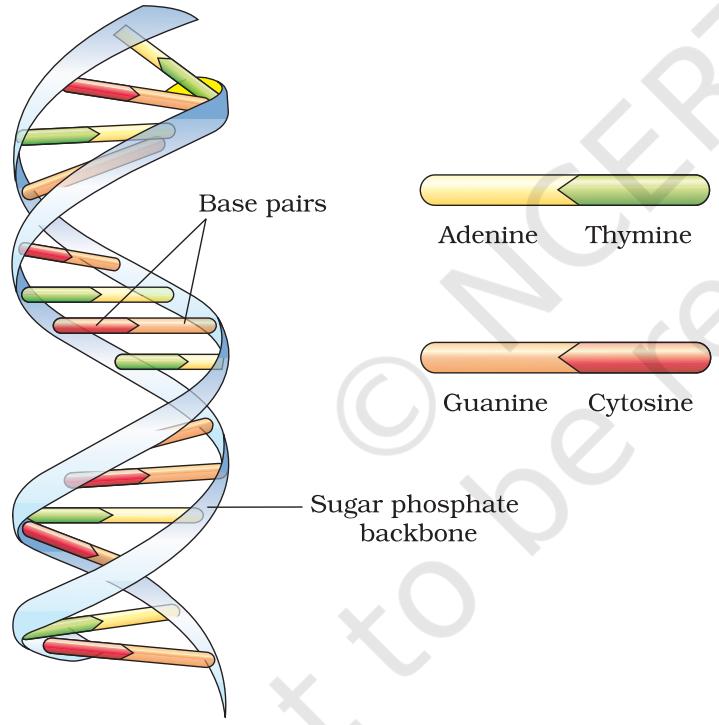

The main features of the model are these. Two polynucleotide chains run in opposite directions (antiparallel), one 5' to 3' and the other 3' to 5'. The sugar-phosphate backbones lie outside and the bases face inward. Adenine pairs with thymine through two hydrogen bonds, and guanine pairs with cytosine through three. Because a purine always sits opposite a pyrimidine, the gap between the strands stays uniform. The helix is right-handed, with a pitch of 3.4 nm and about 10 base pairs per turn, so adjacent base pairs are 0.34 nm apart. Stacking of base pairs adds to hydrogen bonding in keeping the helix stable.

Complementarity is the key genetic idea: knowing one strand tells you the other, and each strand can serve as a template to make an identical daughter molecule. Crick soon proposed the central dogma, in which information flows from DNA to RNA to protein. Some viruses reverse the first step, copying RNA into DNA, which is called reverse transcription.

Key Points

Examples

Packaging of the DNA Helix

Stretch out the DNA of a single mammalian cell and it measures roughly 2.2 metres (6.6 billion bp multiplied by 0.34 nm), yet the nucleus is only about a millionth of a metre across. The cell solves this through systematic packaging.

Prokaryotes such as E. coli have no membrane-bound nucleus, but their DNA is not spread randomly. The negatively charged DNA is held by some positively charged proteins in a region called the nucleoid, and it is arranged in large loops.

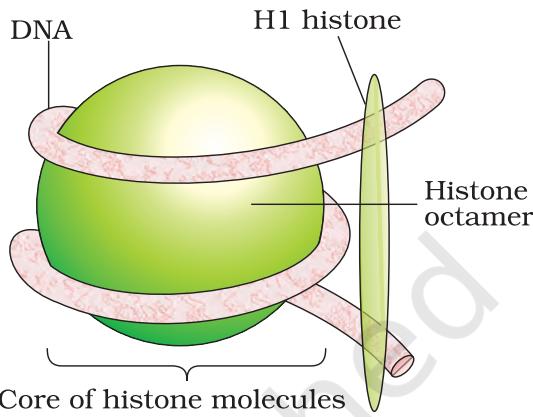

Eukaryotes use a more elaborate scheme. Histones are small basic proteins rich in the positively charged amino acids lysine and arginine. Eight histone molecules assemble into a histone octamer. Negatively charged DNA wraps around this octamer, and the unit is a nucleosome, which holds about 200 bp of DNA. Nucleosomes repeat along the DNA and make up chromatin; under an electron microscope the arrangement appears as beads on a string.

This fibre is coiled and condensed still further, which needs extra non-histone chromosomal (NHC) proteins, until it forms the compact chromosomes seen at metaphase. Chromatin is not uniform. Loosely packed, light-staining regions are euchromatin and are transcriptionally active, whereas tightly packed, dark-staining regions are heterochromatin and are generally inactive. This difference in packing is one way a cell controls which genes are available for expression.

Key Points

Examples

Search for the Genetic Material: Griffith and Avery

By the 1920s scientists suspected the chromosomes carried heredity, but they did not know which molecule did the job; many assumed it was protein. The first major clue came in 1928 from Frederick Griffith, who worked with Streptococcus pneumoniae. The S (smooth) strain has a polysaccharide capsule and is virulent, killing mice. The R (rough) strain lacks the capsule and is harmless.

Griffith's observations went as follows. Live S cells killed mice. Live R cells did not. Heat-killed S cells did not. But a mixture of heat-killed S cells and live R cells killed the mice, and living S bacteria could be recovered from the dead animals. Some transforming principle from the dead S cells had converted harmless R bacteria into virulent S bacteria. Griffith could not say what that principle was.

Oswald Avery, Colin MacLeod and Maclyn McCarty then purified the biochemical components from heat-killed S cells (protein, DNA, RNA and others) and tested each for transforming ability. Only the DNA fraction transformed R cells. Treating the extract with protease or RNase did not stop transformation, but DNase destroyed it. This told them the transforming principle was DNA, not protein or RNA. Many biologists were still not fully convinced, which set the stage for a more decisive experiment.

Key Points

Examples

Hershey-Chase Experiment and Why DNA Is Preferred

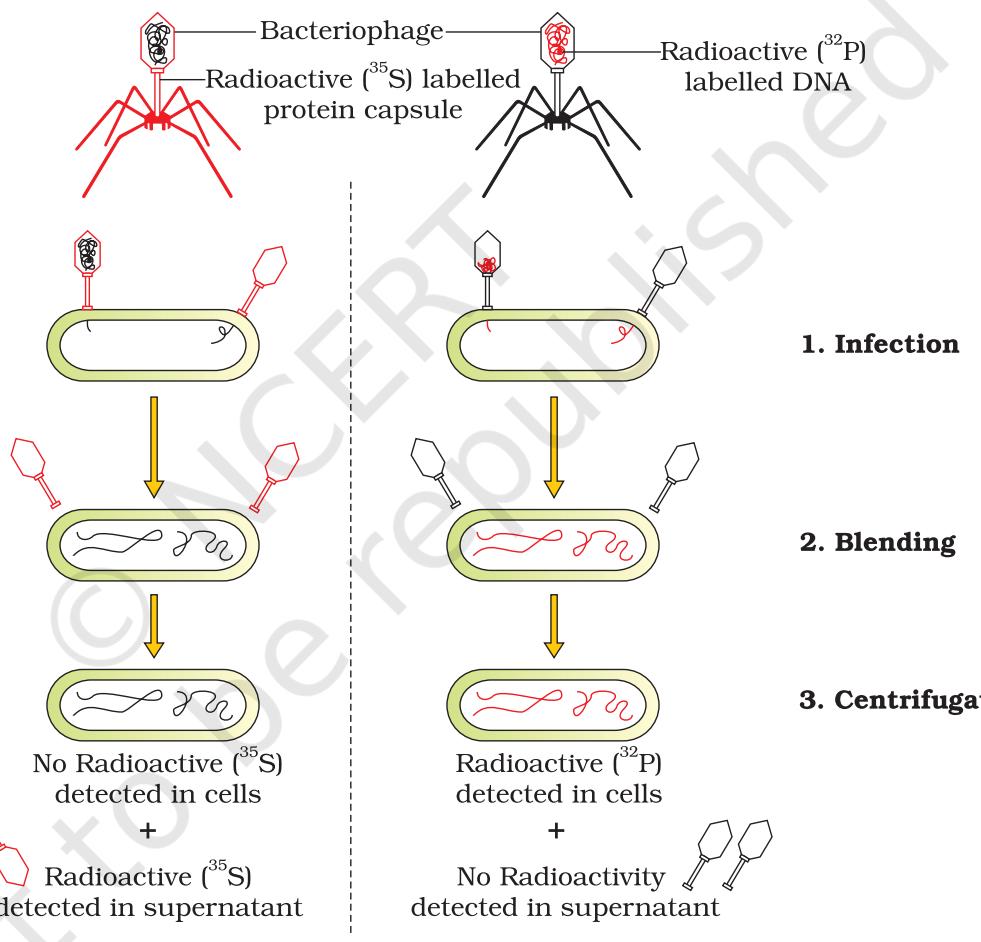

The unequivocal proof came in 1952 from Alfred Hershey and Martha Chase, who used bacteriophages, viruses that infect bacteria. A phage attaches to a bacterium and its genetic material enters, after which the host builds new virus particles. The question was whether protein or DNA was entering.

They exploited a chemical difference: DNA contains phosphorus but no sulphur, while proteins contain sulphur but no phosphorus. One batch of phages was grown in radioactive phosphorus (32P), labelling the DNA, and another in radioactive sulphur (35S), labelling the protein coat. Each batch infected E. coli. The mixture was then agitated in a blender to strip the empty coats from the cell surface, and centrifugation separated the heavier bacteria from the lighter viral coats. Bacteria infected with 32P phages were radioactive; bacteria infected with 35S phages were not. So DNA, not protein, enters the cell and directs new phages.

Why DNA rather than RNA in most organisms? A genetic material must replicate, be stable, allow slow mutation and be able to express itself. Both nucleic acids can pair by complementarity, but the 2'-OH makes RNA reactive and labile, while thymine and double-strandedness make DNA more stable and repairable. RNA mutates faster and codes for protein directly, so it suits transmission and viruses with short lives. Evidence suggests RNA was the first genetic material and DNA evolved from it, which is the RNA world idea.

Key Points

Examples

DNA Replication

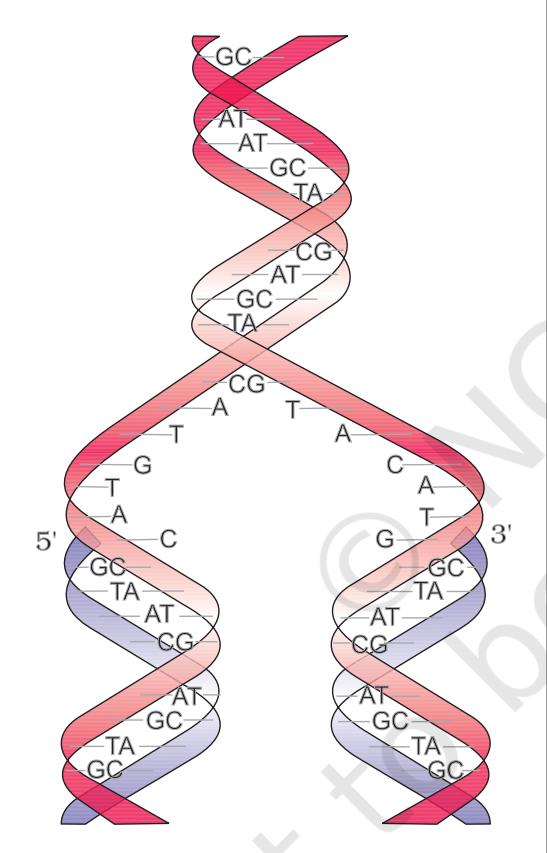

When Watson and Crick described the double helix they pointed out that base pairing suggests a way of copying. In the semiconservative scheme the two strands separate and each acts as a template for a new complementary strand, so every daughter DNA has one parental and one newly made strand.

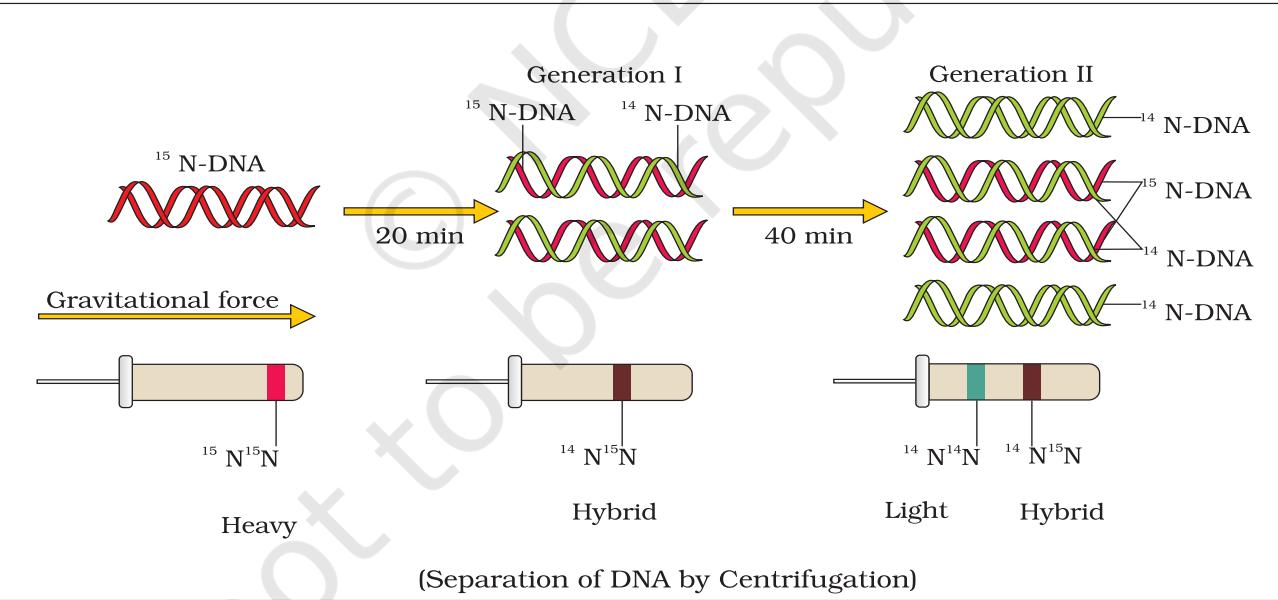

Matthew Meselson and Franklin Stahl proved this in 1958 using E. coli. They grew cells for many generations in a medium with 15NH4Cl, so the DNA became heavy with the non-radioactive isotope 15N. Cells were shifted to normal 14N medium and samples were taken every generation. Using caesium chloride density gradient centrifugation they found that DNA after one generation (20 minutes) was of intermediate (hybrid) density, and after two generations (40 minutes) there were equal amounts of hybrid and light DNA. Taylor and colleagues showed the same for chromosomes of Vicia faba using radioactive thymidine.

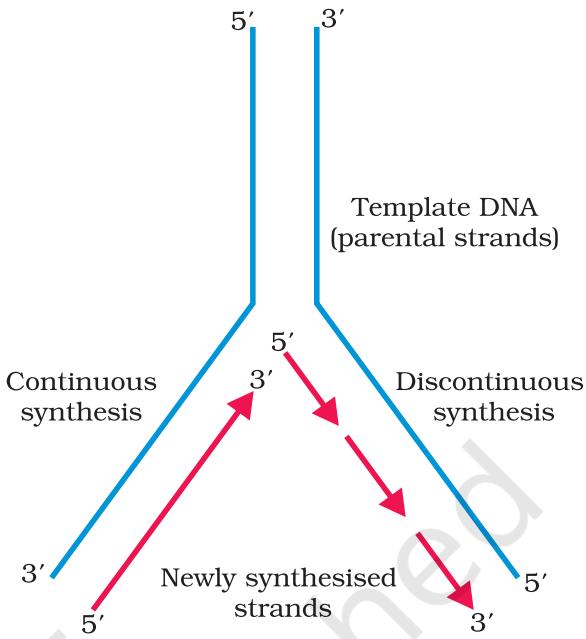

Replication needs several enzymes. DNA-dependent DNA polymerase adds nucleotides only in the 5' to 3' direction, using deoxynucleoside triphosphates that also supply energy. It works at a replication fork, so one strand (template 3' to 5') is copied continuously while the other is copied discontinuously in short pieces that DNA ligase joins. Replication begins at a specific origin of replication, and in eukaryotes it occurs in the S phase of the cell cycle. E. coli copies its genome in about 18 minutes, approximately 2000 bp per second.

Key Points

Examples

Transcription: Copying DNA into RNA

Transcription is the copying of genetic information from one strand of DNA into RNA, again guided by complementarity, except that adenine pairs with uracil. Unlike replication, only a segment of DNA, and only one strand of it, is copied. If both strands were transcribed, they would give RNAs of different sequences coding for different proteins, and the two complementary RNAs could also pair into double-stranded RNA that cannot be translated.

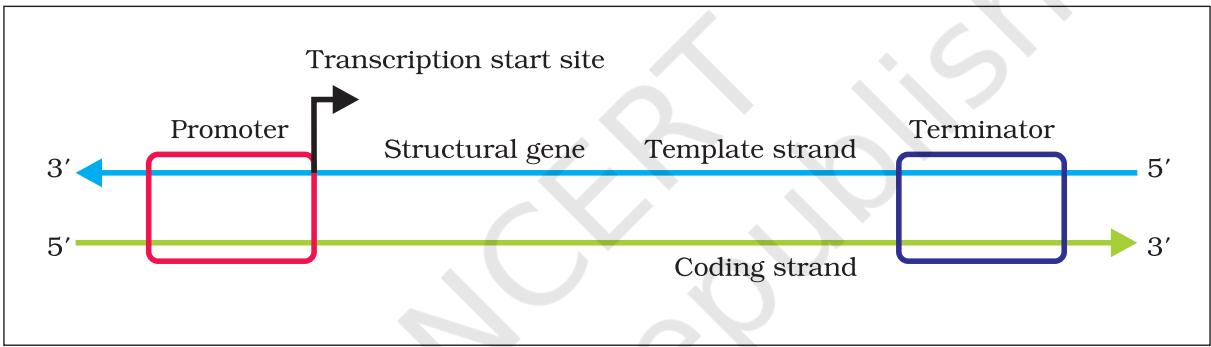

A transcription unit has three regions: a promoter, the structural gene and a terminator. The promoter lies at the 5' end (upstream) of the coding strand and provides the binding site for RNA polymerase. The strand with 3' to 5' polarity is the template strand; the other strand, with the same sequence as the RNA (except T for U), is called the coding strand.

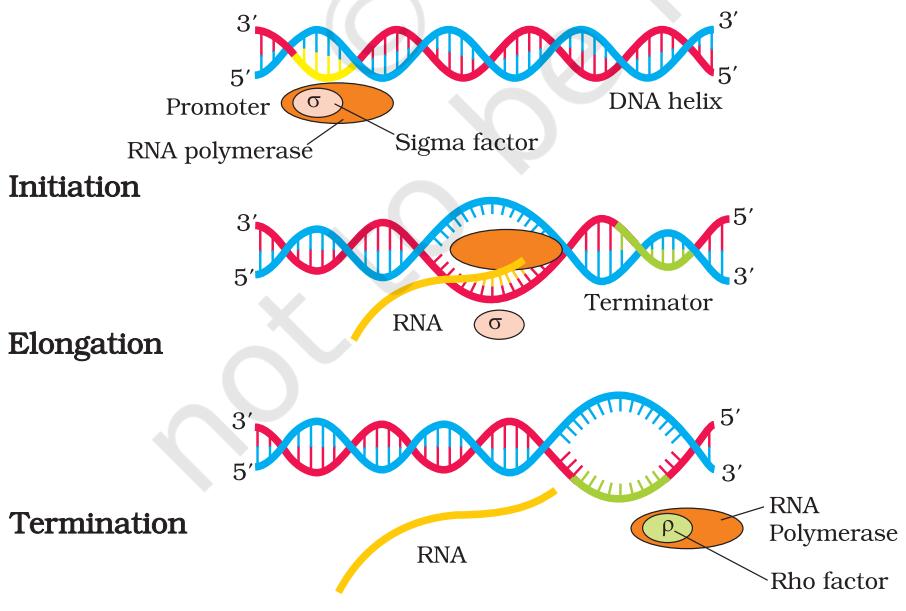

In bacteria one DNA-dependent RNA polymerase makes mRNA, tRNA and rRNA. It binds the promoter with the sigma factor (initiation), elongates the chain using nucleoside triphosphates, and finishes when it meets the terminator with help from rho factor. Because there is no nucleus, translation can start while the mRNA is still being made.

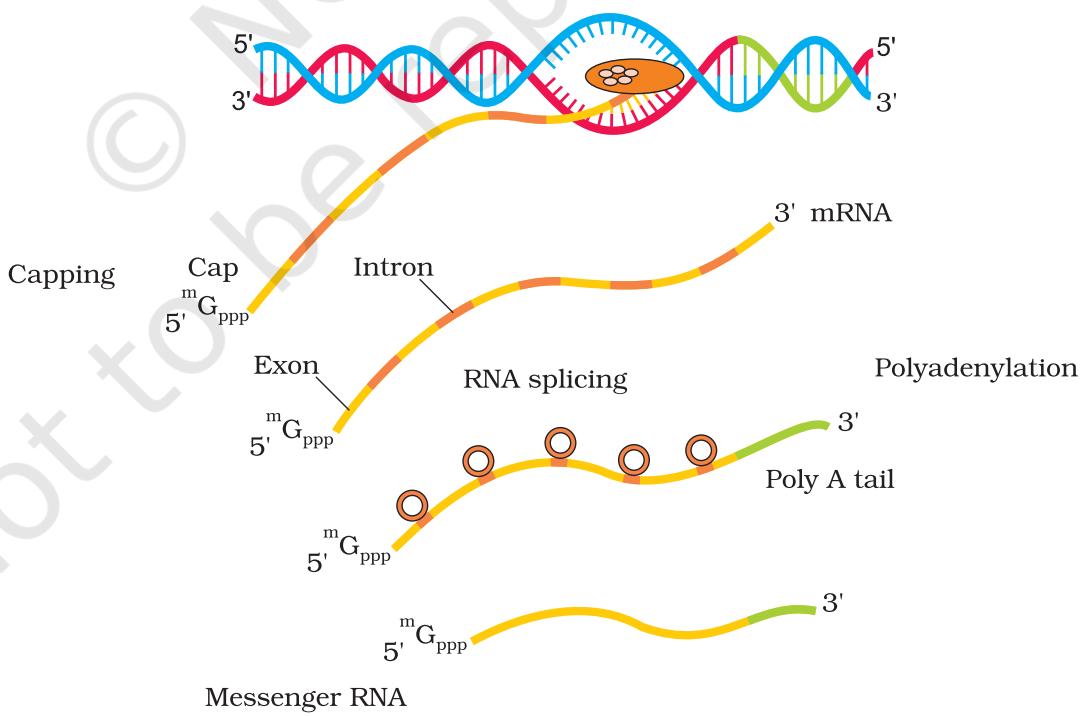

Eukaryotes are more complex. RNA polymerase I makes rRNAs, polymerase II makes hnRNA (the precursor of mRNA), and polymerase III makes tRNA, 5S rRNA and snRNAs. Genes are split into exons and introns. hnRNA undergoes splicing to remove introns, capping with methyl guanosine triphosphate at the 5' end and tailing with 200-300 adenylate residues at the 3' end before leaving the nucleus as mRNA.

Key Points

Examples

The Genetic Code and tRNA

Replication and transcription are easy to understand through base pairing, but translation converts a nucleotide sequence into an amino acid sequence, and there is no complementarity between the two. A code is therefore needed. George Gamow argued that since four bases must specify twenty amino acids, the code must be a triplet, which allows 4 x 4 x 4 = 64 codons. Har Gobind Khorana synthesised RNAs of defined sequence, Marshall Nirenberg developed a cell-free protein synthesis system and Severo Ochoa's enzyme polynucleotide phosphorylase helped make RNA without a template; together these cracked the code.

Features of the genetic code include these. It is triplet, with 61 codons for amino acids and 3 stop codons (UAA, UAG, UGA). It is degenerate, since many amino acids have more than one codon. It is unambiguous and read continuously in mRNA without punctuation. It is nearly universal, with minor exceptions in mitochondria and some protozoans. AUG codes for methionine and is also the start codon.

Mutations show how the code works. A point mutation such as the change of glutamic acid to valine in beta-globin causes sickle cell anaemia. Inserting or deleting one or two bases shifts the reading frame (frameshift mutation), while inserting or deleting three bases adds or removes one amino acid and keeps the frame intact.

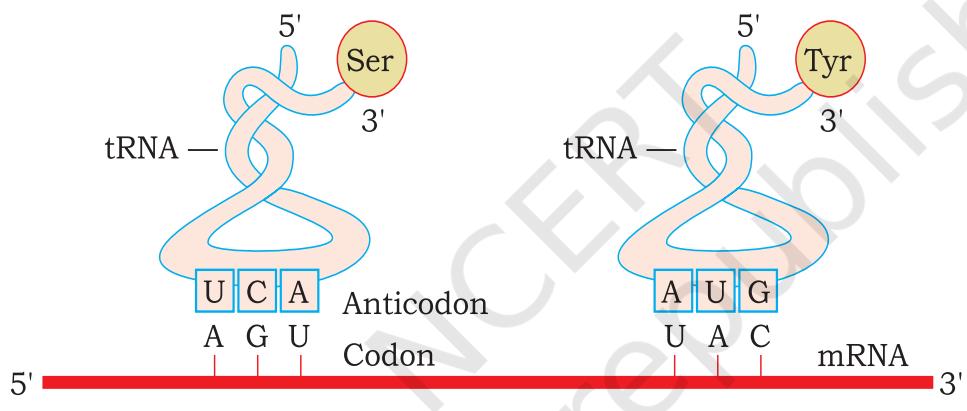

Crick predicted an adapter molecule, which is tRNA. Its anticodon loop pairs with the codon and its acceptor end carries the amino acid. It looks like a clover leaf in two dimensions and an inverted L in three. There is a separate initiator tRNA but none for stop codons.

Key Points

Examples

Translation and Gene Regulation: The lac Operon

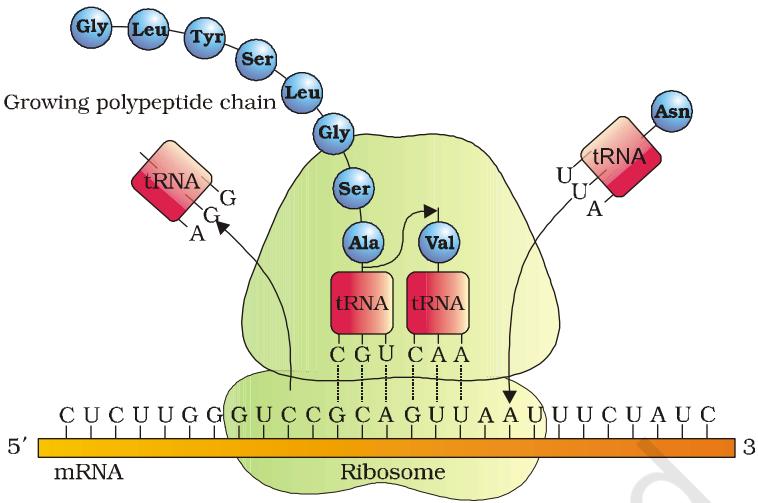

Translation is the synthesis of a polypeptide from mRNA on the ribosome. First, each amino acid is activated with ATP and attached to its specific tRNA (charging or aminoacylation). The ribosome has a large and a small subunit made of rRNA and about 80 proteins. Initiation begins when the small subunit binds mRNA and the initiator tRNA recognises the AUG start codon. In elongation, charged tRNAs enter one by one, base-pair through their anticodons with successive codons, and the ribosome moves along the mRNA while forming peptide bonds; rRNA (23S in bacteria) acts as a ribozyme. When a stop codon is reached a release factor frees the polypeptide. mRNA also has untranslated regions (UTRs) at both ends.

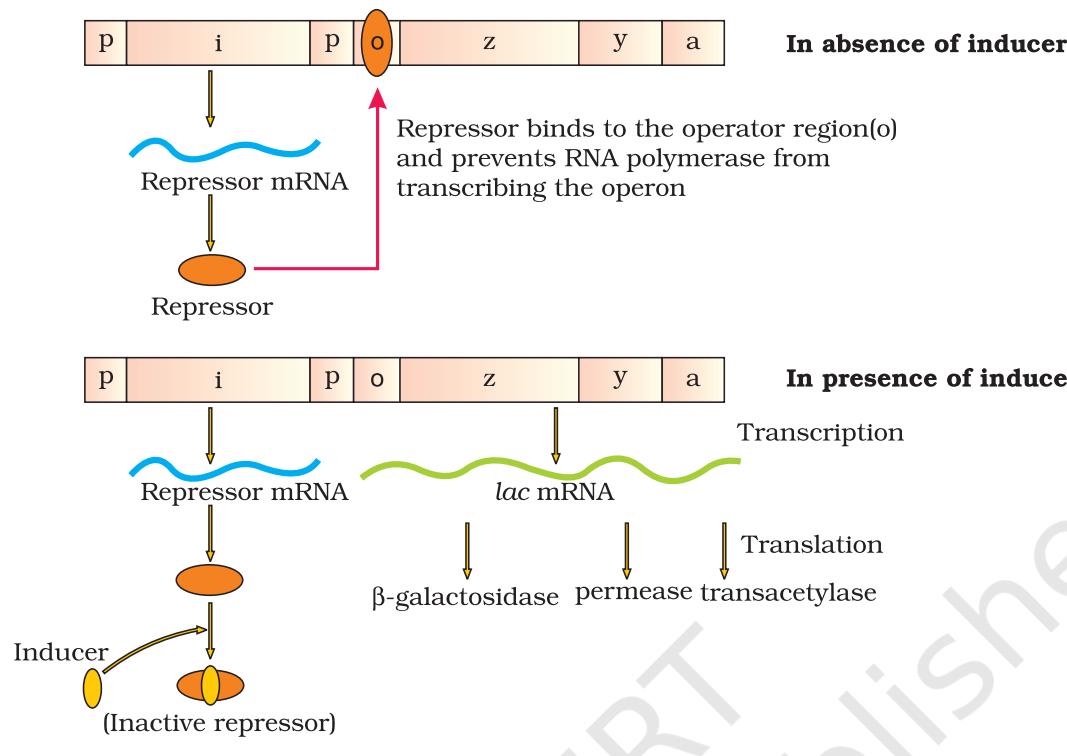

Gene expression must be regulated, and in prokaryotes the main control is at transcription initiation. Genes with related functions are grouped into an operon with one promoter. The lac operon of E. coli, studied by Francois Jacob and Jacques Monod, has the regulatory i gene (repressor) and structural genes z (beta-galactosidase), y (permease) and a (transacetylase), plus promoter and operator. Without lactose the repressor binds the operator and blocks RNA polymerase. When lactose (the inducer, via allolactose) is present, it binds the repressor and inactivates it, so transcription proceeds. This is negative regulation, and the enzyme synthesis is controlled by its own substrate. Glucose or galactose cannot act as inducers.

Key Points

Examples

Human Genome Project and DNA Fingerprinting

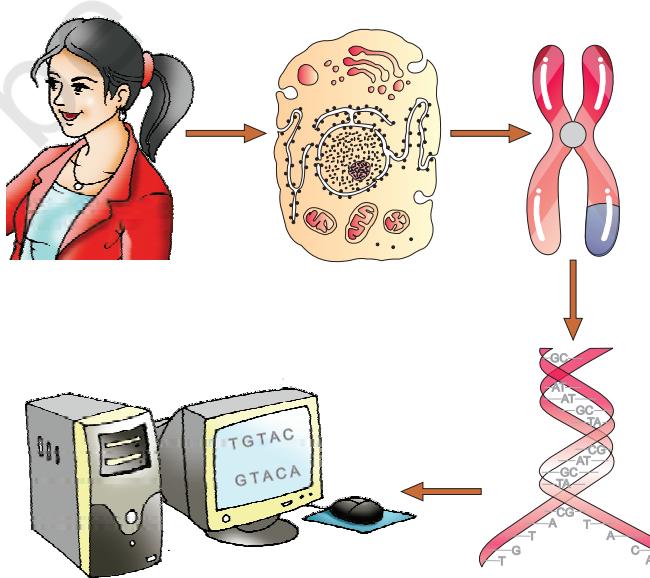

The Human Genome Project (HGP), launched in 1990 and completed in 2003, aimed to sequence all roughly 3 billion base pairs of human DNA. At an early estimated cost of 3 US dollars per base pair, the project would cost about 9 billion dollars, and storing the sequence would need around 3300 books of 1000 pages each, so it relied on computers and gave rise to bioinformatics. Goals included identifying all genes, sequencing the base pairs, storing data in databases, improving analysis tools, transferring technology and addressing ethical, legal and social issues.

Two strategies were used: Expressed Sequence Tags (identifying genes that are expressed as RNA) and whole-genome sequencing followed by sequence annotation. DNA was fragmented, cloned in hosts using BAC or YAC vectors and sequenced by automated machines based on Sanger's method; computer programs then aligned overlapping fragments. Findings include about 3164.7 million bp, about 30,000 genes, only under 2 percent coding for proteins, large repetitive regions, 99.9 percent similarity between humans, chromosome 1 with the most genes and the Y with the fewest, and about 1.4 million SNPs.

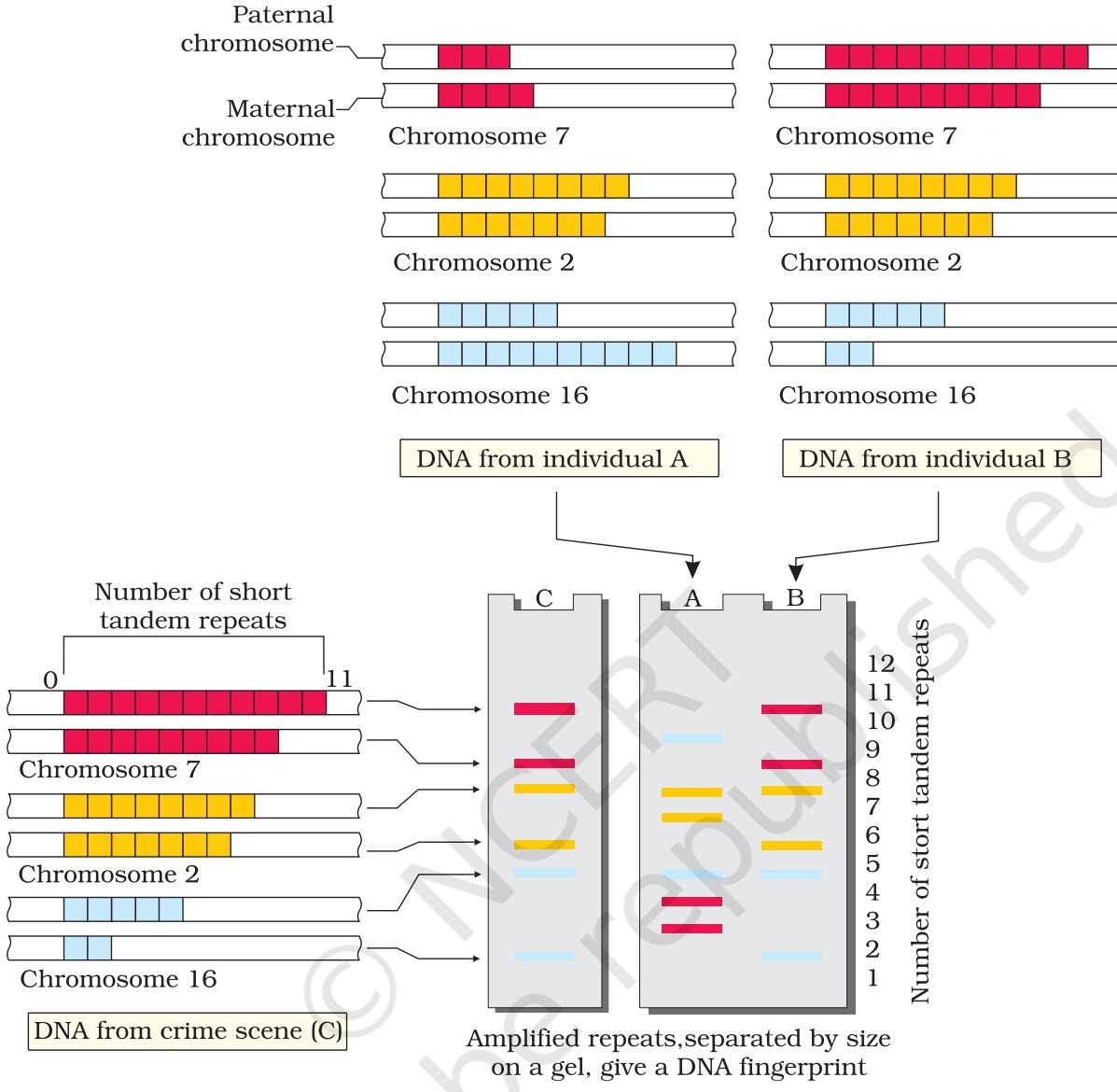

DNA fingerprinting exploits the remaining 0.1 percent variation in repetitive satellite DNA, especially VNTRs (minisatellites). Developed by Alec Jeffreys, the steps are DNA isolation, restriction digestion, gel electrophoresis, Southern blotting, hybridisation with a labelled VNTR probe and autoradiography. The banding pattern is unique to an individual except identical twins and is used in forensics, paternity disputes and population diversity studies; PCR allows analysis from a single cell.

Key Points

Examples

Frequently Asked Questions

Describe Griffith's transformation experiment and state his conclusion.

Griffith injected mice with live S strain (mice died), live R strain (mice lived), heat-killed S strain (mice lived), and a mixture of heat-killed S with live R (mice died). Living S bacteria were recovered from the dead mice. He concluded that some transforming principle from the heat-killed S cells converted R bacteria into virulent S bacteria, though he could not identify its chemical nature.

How did Hershey and Chase prove that DNA is the genetic material?

They grew one set of bacteriophages in radioactive phosphorus (labelling DNA) and another in radioactive sulphur (labelling protein). After infection of E. coli, blending removed the viral coats and centrifugation separated cells from coats. Only bacteria infected with 32P phages were radioactive, so DNA entered the host and carried genetic information, while protein stayed outside.

Explain the Meselson and Stahl experiment and its conclusion.

E. coli was grown for many generations in 15N medium, making DNA heavy, then shifted to 14N medium. DNA from each generation was analysed in a CsCl density gradient. After one generation all DNA was hybrid, and after two generations half was hybrid and half light. This pattern proves that DNA replicates semiconservatively, with each daughter retaining one parental strand.

Why is DNA a better genetic material than RNA?

RNA has a reactive 2'-OH on each ribose, which makes it labile and easily degraded, and it is single stranded. DNA lacks this group, has thymine instead of uracil and is double stranded with complementary strands, so it is chemically less reactive and structurally more stable and can be repaired. RNA mutates faster, which suits short-lived viruses.

Differentiate between the template strand and the coding strand.

The template strand has 3' to 5' polarity and is the strand that RNA polymerase reads to build RNA by complementary pairing. The coding strand has 5' to 3' polarity, has the same base sequence as the RNA (with T in place of U) and does not itself act as template. All reference points of a transcription unit are defined using the coding strand.

What are the salient features of the genetic code?

The code is a triplet, with 64 codons: 61 for amino acids and three stop codons (UAA, UAG, UGA). It is degenerate because several amino acids have more than one codon. It is read continuously without punctuation, it is nearly universal, and AUG is both the start codon and the codon for methionine. Exceptions occur in mitochondria and some protozoans.

Describe the structure and function of tRNA.

tRNA is the adapter that connects the code in mRNA to amino acids. Its secondary structure looks like a clover leaf, though the real molecule is an inverted L. The anticodon loop has bases complementary to the codon, and the acceptor end binds a specific amino acid. There is one set of tRNAs for each amino acid, an initiator tRNA, and none for stop codons.

Explain the working of the lac operon in the presence and absence of lactose.

The i gene continuously makes a repressor that binds the operator and blocks RNA polymerase, so the z, y and a genes are off when lactose is absent. When lactose (or allolactose) is present it binds the repressor and inactivates it, allowing RNA polymerase to transcribe the genes for beta-galactosidase, permease and transacetylase. This is negative regulation with lactose as inducer.

What are the goals and salient features of the Human Genome Project?

The aim was to identify all human genes, sequence the 3 billion base pairs, store data in databases, improve analysis tools, transfer technology and address ethical, legal and social issues. Findings include about 30,000 genes, under 2 percent coding sequence, abundant repeats, 99.9 percent identical sequence among people, and 1.4 million SNPs. The project was completed in 2003.

What is DNA fingerprinting? Outline the steps and applications.

DNA fingerprinting identifies individuals from differences in repetitive DNA (VNTR) polymorphism. Steps: isolate DNA, digest with restriction enzymes, separate fragments by electrophoresis, blot onto a nylon or nitrocellulose membrane, hybridise with a labelled VNTR probe and detect by autoradiography. It is used in forensics, paternity testing and studying population diversity.
